(Live chat) ■ Introduction

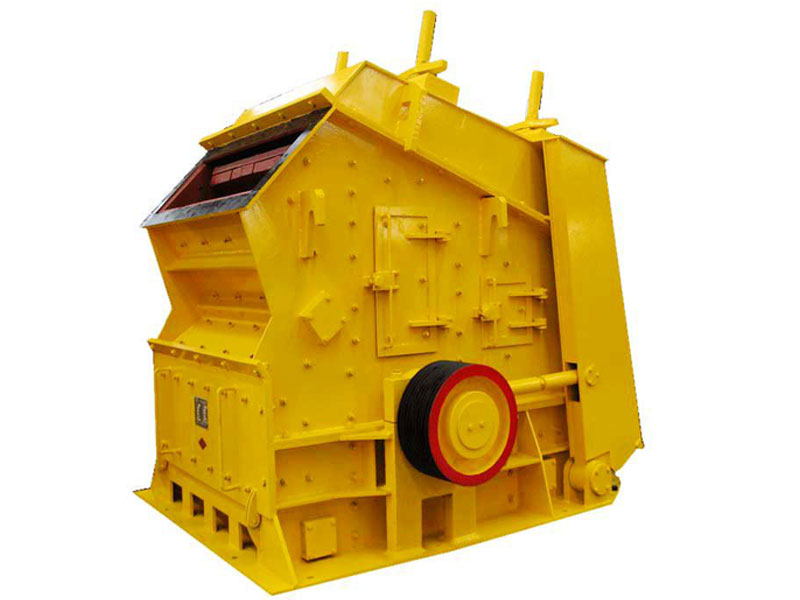

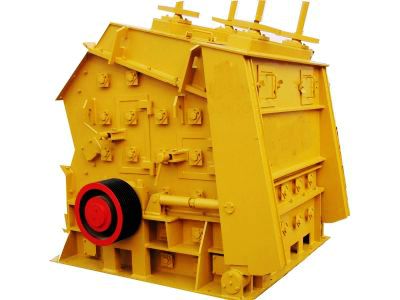

Impact Crusher Introduction:
Impact Crusher is adopting the latest manufacturing technology and unique structure design by our company , the PF series impact crusher can produce cubic products with very good grain shape without tension and crack. It can crush each kind of coarse, medium and fine cubic material (granite, limestone and concrete) with feeding size not more than 500mm and crushing strength not more than 350MPa and is widely applied to secondary and tertiary crushing of various ores and medium-hard materials in railway, highway, energy, cement, chemical industry construction, etc
Impact crusher is suitable for materials whose compressive strength is under 350Mpa, and particle size is less than 500mm. With end products in cubic shape, the impact crusher is widely used for sand and rock producing in the industry of roads, railways, reservoir, electricity power and building materials and so on.
■ Features
Impact Crusher Features:
1. Big input size, high crushing chamber to meet the material hardness, block degree , the product powder less .
2. The impact plate and hammer gap can be easily adjusted, effective control of the particle size , particle shape is good.
3. compact , rigid machine , the rotor has a large moment of inertia .
4. High chrome plate hammer , impact resistance , abrasion resistance, impact force .
5. Keyless access, easy maintenance, economical and reliable.
6. Crushing full-featured , high productivity, little mechanical wear , high overall efficiency
■ Technical Data
Technical Parameter of Impact Crusher
|
Model |
Specs |
Feeding size |
Max feeding side length |
Capacity |
Power |
Weight |
Dimensions (LXWXH) |
|
PF-1007 |
Φ1000×700 |
400×730 |
300 |
30-70 |
45 |
12 |
2330×1660×2300 |
|
PF-1010 |
Φ1000×1050 |
400×1080 |
350 |
50-90 |
55 |
15 |
2370×1700×2390 |
|
PF-1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
110 |
17.7 |
2680×2160×2800 |
|
PF-1214 |
Φ1250×1400 |
400×1430 |
350 |
100-180 |
132 |
22.4 |
2650×2460×2800 |
|
PF-1315 |
Φ1320×1500 |
860×1520 |
500 |
130-250 |
220 |
27 |
3180×2720×2620 |
|
PF-1520 |
Φ1500×2000 |
830×2040 |
700 |
300-550 |
400 |
50.6 |
3959×3564×3330 |
