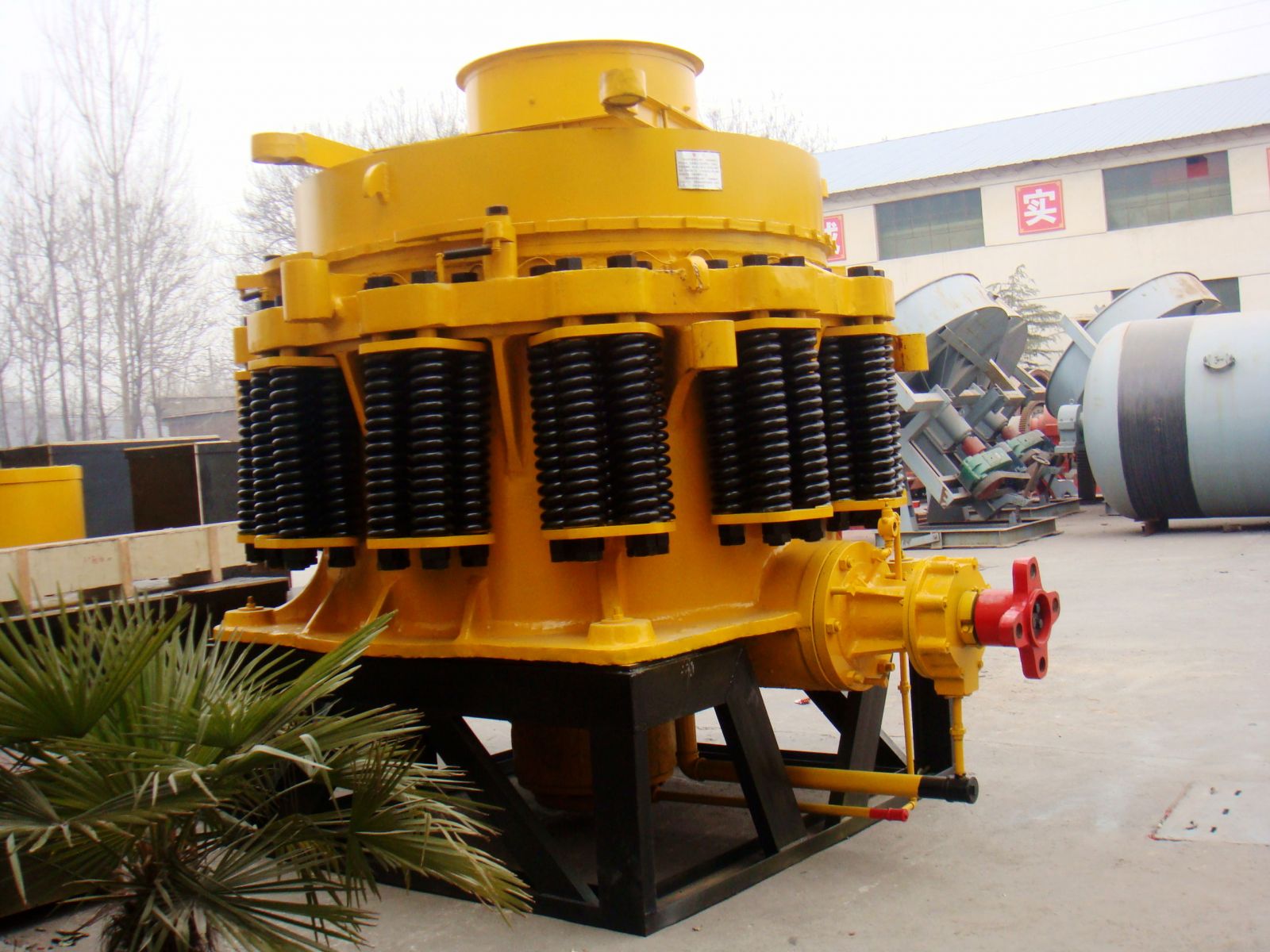

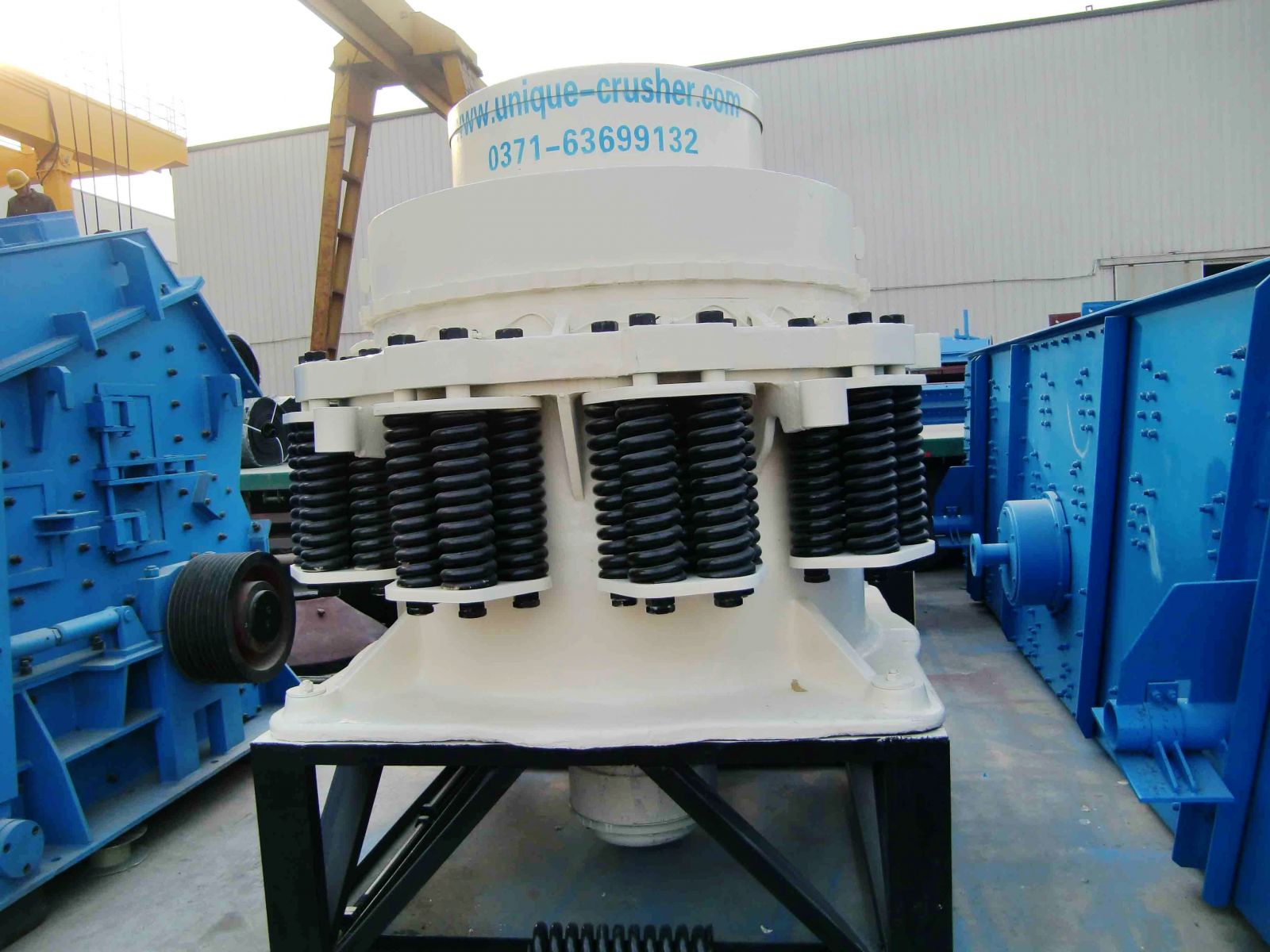

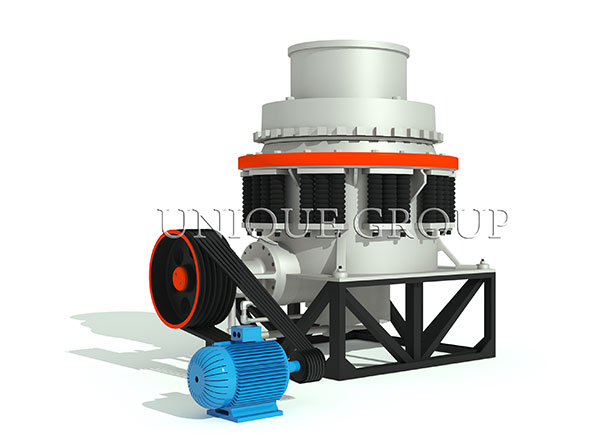

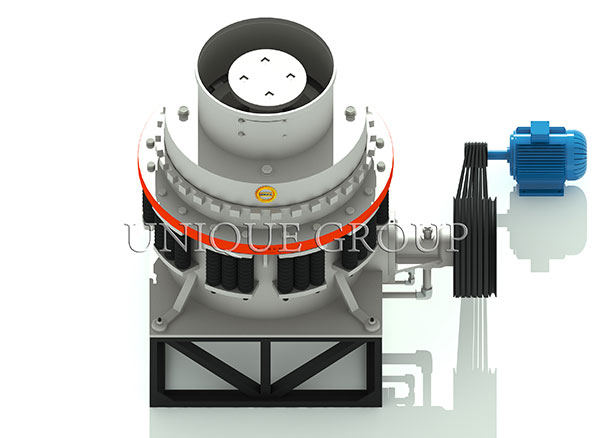

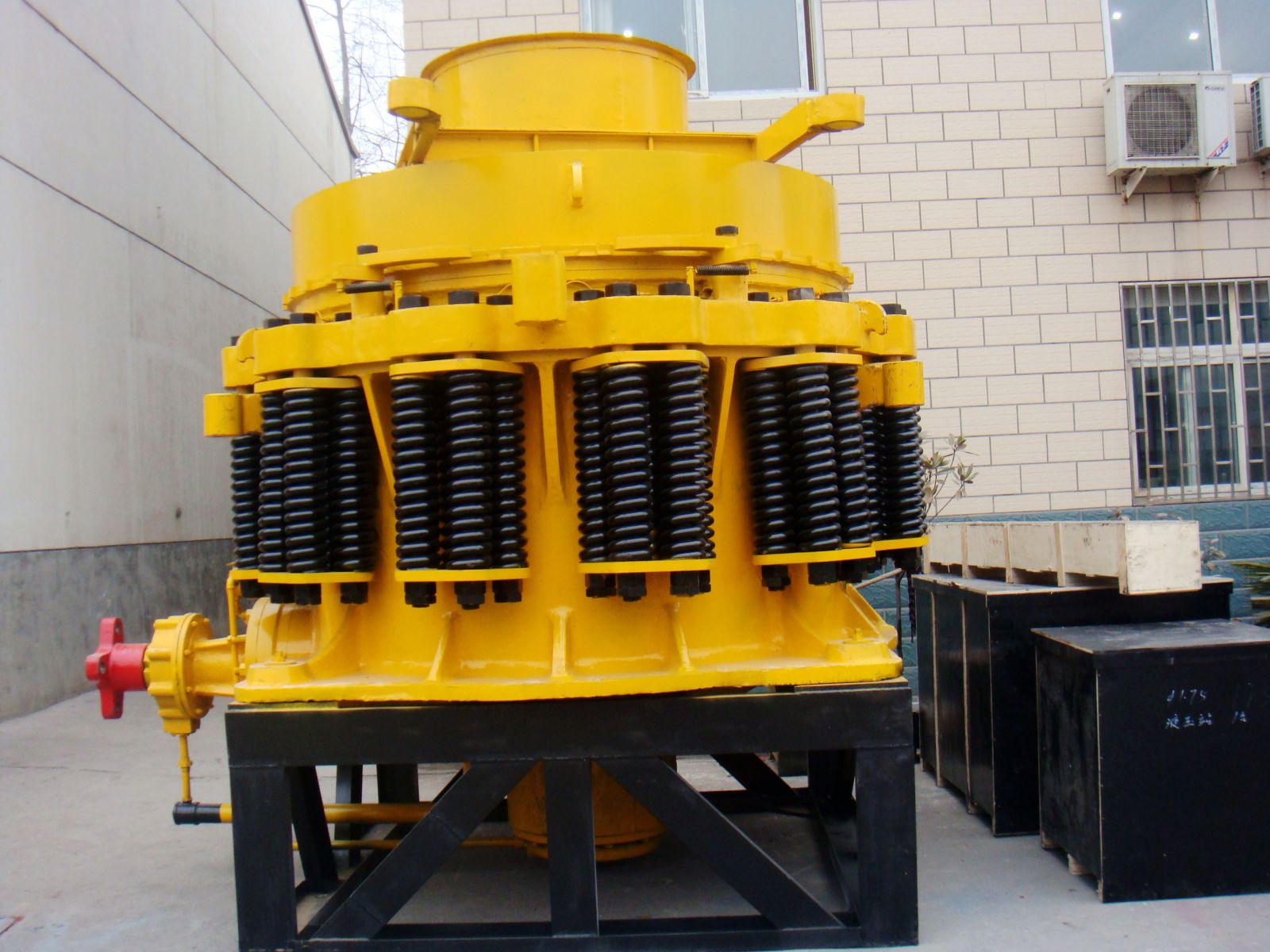

Spring Cone Crusher

Model: PYB600

Cone diameter: 600mm

Discharge width : 12-25mm

Max Feeding size: 65mm

Capacity: 40T/H

Motor power: 30KW

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

| Share

Product Lists

Crushing Plant

Jaw Crusher PEW Jaw Crusher Spring Cone Crusher Symons Cone Crusher Impact Crusher Vertical Shaft Impact Crusher Roll Crusher Linear Vibrating Screen Vibrating Feeder Mobile crusher plant Sand Washer Crawler rock drill

Ore Processing Equipment

Press Filter Centrifugal Concentrator Wet Grinding Mill Raymond Mill Flotation Machine Ball Mill High-efficiency Concentrator Ceramic Ball Mill Magnetic Separator Agitation Tank LS Series Shaking Table Spiral Classifier Spiral Chute Ore Processing Plant

Cement Production Equipment

Rotary Kiln Single Drum Cooling Machine Cement Mill Raw Mill Rotary Dryer Air-swept Coal Mill

Lime Plant & Gypsum Plant

Quick Lime Plant Gypsum Plant Hydrated Lime Plant

Need help?

(Live chat)

or Emai us: sales@unique-crusher.com

+86-371-63699132

sales@unique-crusher.com

Xingmi Road, Xingyang city, Zhengzhou, Henan, China.

Introduction
Features
Technical Data
Inquiry

■ Introduction

Cone Crusher Introduction:

This series of cone crusher is used for crushing ores and rocks, and the advantages are: reliable structure, high efficiency, easy adjustment and economy. There are spring cone crusher and Symons cone crusher. The spring system is the overload protection device, which makes foreign material go through the machine without bringing any hurt to it. The sealing modes are oil and water, which segregate the stone powder and lubricating system. The crushing chamber is decided by the purpose of ore, the standard model is suitable for medium crushing; the medium model is suitable for fine crushing and the short head model is suitable for fine crushing

■ Features

Cone Crusher Working principle and Features:

When the Cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

■ Technical Data

Technical Parameter of Cone Crusher

Model		Cone diameter (mm)	Max feeding size (mm)	Discharge width (mm)	Capacity (t/h)	Motor power (kw)	Main shaft swing times	Weight (t)	Dimensions (LXWXH) (mm)
PYB	600	600	65	12-25	40	30	356	5	2234×1370×1675
PYD	600	600	35	3-13	12-23	30	356	5.5	2234×1370×1675
PYB	900	900	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYZ			60	5-20	20-65			11.2	2692×1640×2350
PYD			50	3-13	15-50			11.3	2692×1640×2350
PYB	1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ			100	8-25	42-135			25	2790×1878×2844
PYD			50	3-15	18-105			25.3	2790×1878×2844
PYB	1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ			185	10-30	115-320			50.3	3910×2894×3809
PYD			85	5-13	75-230			50.2	3910×2894×3809
PYB	2200	2200	300	30-60	59-1000	280-260	220	80	4622×3302×4470
PYZ			230	10-30	200-580			80	4622×3302×4470
PYD			100	5-15	120-340			81.4	4622×3302×4470
